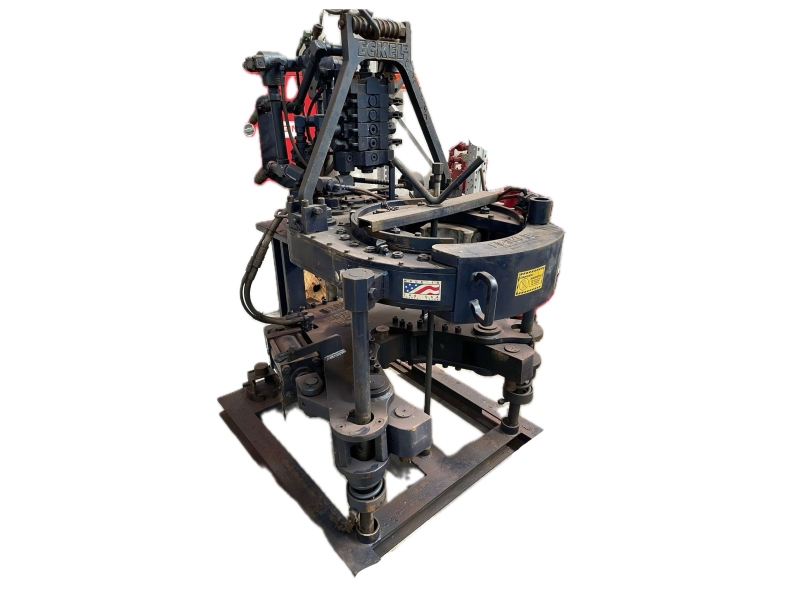

Power tong Eckel HD-35 13 5/8

Casing Tong 5 1/2" - 13 5/8"  Maximum Torque 35,000 ft-lbs (47453 Nm)
When your applications require a higher torque performance, the Eckel Model 13⅝ HD-35 provides the performance you need with a maximum torque of 35,000 ft-lbs. Eckel patented CASE STIFFENER technology enhances overall torque to provide consistent torque output. Having a high full 360° rotational torque capability ensures the tong can makeup special torque-turn connections that require continuous rotation. Also, the CASE STIFFENER technology reduces stress and wear on the rotary gear teeth. The tong door easily swings open or closed and is locked when tong torque is applied. When combined with our safety door interlock, the tong provides unparalleled safety while speeding up the turn around time between connections.

          Features „

• Maximum Torque: 35,000 ft-lbs (47453 Nm) „
• CASE STIFFENER Technology Enhanced
• Two Speed Gear Train „
• Self Aligning Throat „
• Drop-in Style Bracket/Mount Shaft Encoder „
• Chain Bridle or Solid Hanger „
• Wrap-Around Dies or Rig Dies
• Tri-Grip Backup: Compression or Tension
