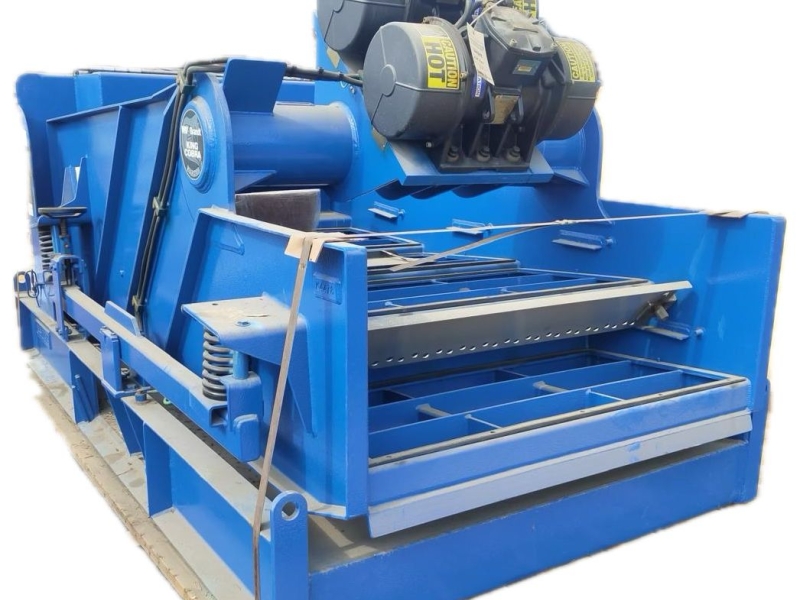

NOV Brandt King Cobra Shale Shaker

Brand New !!
Stock Material !!

NOV Brandt King Cobra Shale Shaker

Screens also avaialble, please contact for details.
office@ofsenergy.com

General information about NOV Brandt King Cobra Shale Shaker :
The NOV BRANDT KING COBRA shaker reduces the liquid pool depth to enable better conveyance of drilled solids across shaker screens. NOV BRAND KING COBRA shaker combines the reliable KING COBRA standard skid, backtank, and screen-angle adjustment features with the rugged new KING COBRA VENOM shaker basket. The basket’s patented Contour Plus design reduces the liquid pool depth to provide better conveyance of drilled solids across the screens. Configured for 0° at the feed panel and +5° on the remaining panels, the Contour Plus design minimizes basket angle elevation and achieves drier solids and increased screen life by decreasing the mud pool volume weight over the screens.

KING COBRA shale shaker also equipped with a variety of high-performance options like NOV patented Constant-G Control (CGC) for increased process capacity and dual motion for more precise vibration control.

Features/Benefits

• Minimal replacement parts – Small parts inventory

• Linear motion (available on all configurations) – Rapidly separates and discharges solids

• G-force

  • Fixed nominal

    • 6.1 G’s – 2.5 hp

    • 8.0 G’s – 3.5 hp

  • Constant-G Control – patented worldwide

    • Automatically sustained settings as loading increases or decreases

    • 6.3 G optimal – 2.5-hp motors

    • 7.3 to 8.3 G optimal – 3.5-hp motors

• Patented Contour Plus deck design with incorporated drying deck; Deck angles (0°, +5°, +5°, +5°)

  • Increases screen life by diminishing mud pool volume and reduces mud losses via a dry solids discharge

• King Cobra series screens

  • Larger screening area (33.4 ft²) or 3.1 m²

  • Cost saving with elimination of crown rubbers

  • Repairable screens

  • Improved cuttings conveyance and fluid throughput

• Patented pin-and-hole screen-securing system

  • Screen secured snugly to basket with no slipping

• Pushbutton (pneumatic) single-point deck-angle adjustment mechanism

  • Quick and easy deck-angle adjustments

• Epoxy and glass flake paint system – Longer paint life
